Alex DM24 26" MTB Rim - 36H
Brand
Alex
80
Details

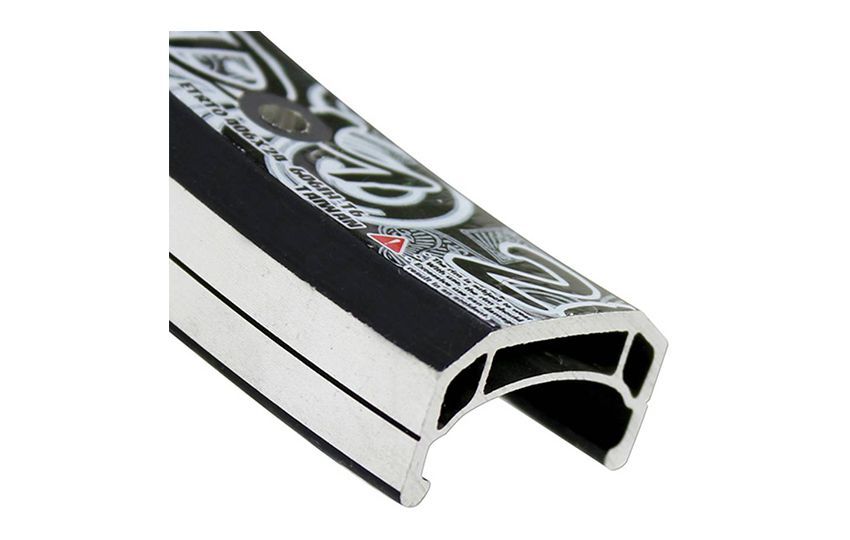

Alex DM18 Wide 26" Rim
Robust MTB Rim for Wider Tyres
Best Suits Tyre Sizes 26 x 1.6 - 2.95*

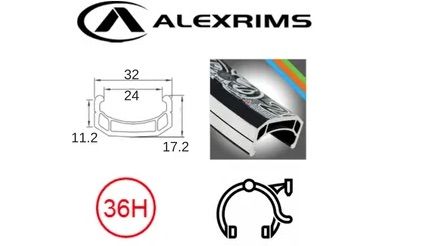

Specifications:
Colour: Black
Nominal Diameter: 26"
Inner Width: 24mm
ETRTO Size: 24-559
Make: Alex
Model: DM24
Holes: 36
Sidewall Braking: Machined for Rim brakes
Valve Drilling: Schrader
Single or Double Walled: Double
Eyeletted: Yes
Weight: n/a
ERD: 546mm
Rims are sold singly
The ETRTO size designation (e.g. 21-559) indicates the width (21 mm) and the inner diameter of the tyre or rim 559 mm). This designation is unambiguous and allows a clear assignment to the rim size.
The NOMINAL diameter is the generic name given to a group of tyres/rims eg 26". In general 26" refers to the group of tyres/rims that fit 26" MTBs. They will be called for example 26 x 2.1 etc..
BUT 26 x 1-1/8 tyres/rims are NOT the same diameter as the above group - they are Wheelchair Sizes and will not fit MTB bikes.
As a general rule 26 x a decimal number ( eg 2.1) will not be compatible with 26 x a fraction ( eg 1/8).
ERD is a number used in spoke length calculations and is not to be confused for the physical size of the rim. The ERD will only be used by someone to build a wheel up from scratch.
* Will my tyre fit this rim?
The Best Suits Tyre Sizes above are based on our wheelbuilders conservative recommendation. In most cases you could fit a tyre a size or two up - but this will be entirely up to you.
VIP: Rim production is to your order so:
- they are not returnable
- they will take 2-3 days on top of normal delivery times
