Built-Tuff 26" Rim Brake - 36H
Brand
Wheelsmith
44
Details
Built-Tuff 26" Rim
Best Suits Tyre Sizes 26 x 1.5 - 2.25*
Engineered in Taiwan. Not made in China. Don't let the value price fool you. At Wheelsmith we are a generation of wheel builders and have sourced the best factories in Asia and Europe to supply OEM direct from factory to us. Cutting out the branded middle man and allowing you to buy quality at a reasonable price.

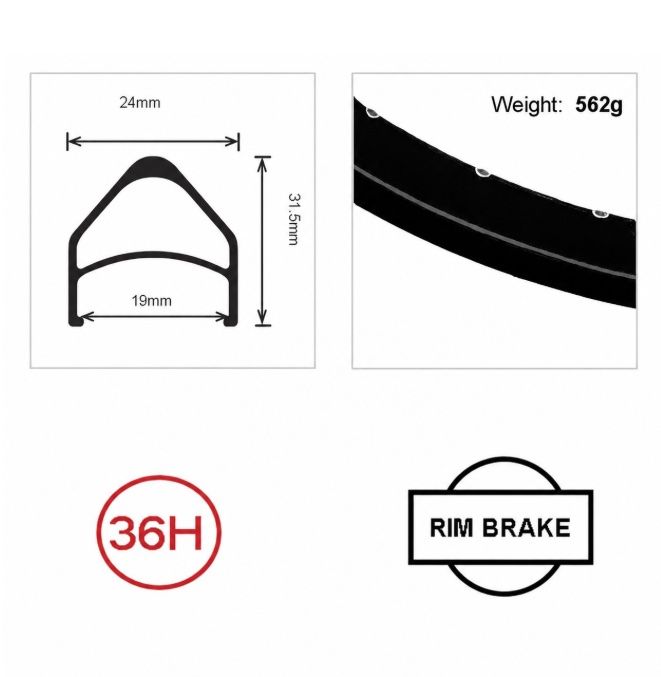

Specifications:
Colour: Black
Nominal Diameter: 26"
Inner Width: 19mm
ETRTO Size: 19-559
Make: Wheelsmith
Model: Built-Tuff
Holes: 36
Sidewall Braking: Rim brakes
Valve Drilling: Schrader
Single or Double Walled: Double
Eyeletted: Yes
Weight: 560g
ERD: 517
Rims are sold singly
The ETRTO size designation (e.g. 21-559) indicates the width (21 mm) and the inner diameter of the tyre or rim 559 mm). This designation is unambiguous and allows a clear assignment to the rim size.
The NOMINAL diameter is the generic name given to a group of tyres/rims eg 26". In general 26" refers to the group of tyres/rims that fit 26" MTBs. They will be called for example 26 x 2.1 etc..
BUT 26 x 1-1/8 tyres/rims are NOT the same diameter as the above group - they are Wheelchair Sizes and will not fit MTB bikes.
As a general rule 26 x a decimal number ( eg 2.1) will not be compatible with 26 x a fraction ( eg 1/8).
ERD is a number used in spoke length calculations and is not to be confused for the physical size of the rim. The ERD will only be used by someone to build a wheel up from scratch.
* Will my tyre fit this rim?
The Best Suits Tyre Sizes above are based on our wheelbuilders conservative recommendation. In most cases you could fit a tyre a size or two up - but this will be entirely up to you.
VIP: Rim production is to your order so:
- they are not returnable
- they will take 3-5 days on top of normal delivery times
