Weinmann AS7X 16" Rim - 36H
31.9
Details
Alex 16" Rim
Best Suits Tyre Sizes 16 x 1.5 - 3.0 *
Specifications:
Colour: Silver
Nominal Diameter: 16"
Inner Width: 24mm
ETRTO Size: 24-305
Make: Weinmann
Model: AS7X
Holes: 36
Sidewall Braking: Machined for Rim brakes
Valve Drilling: Schrader
Single or Double Walled: Single
Eyeletted: No
ERD: 296mm

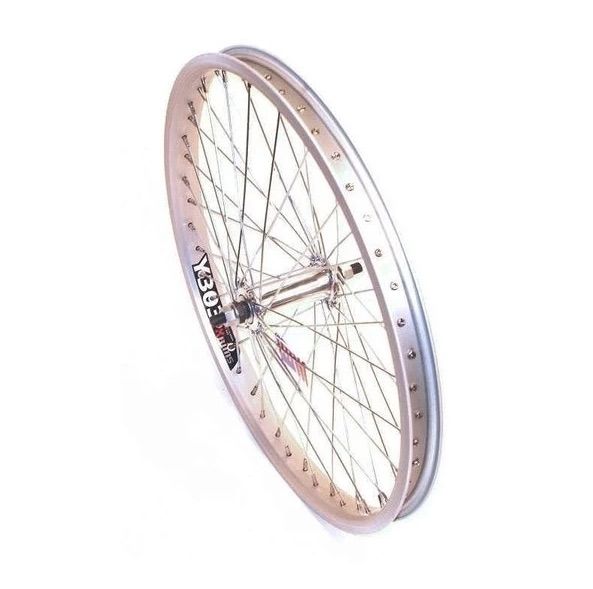

Image is of the rim in a wheel - you are buying the rim only!
Rims are sold singly
The ETRTO size designation (e.g. 21-559) indicates the width (21 mm) and the inner diameter of the tyre or rim 559 mm). This designation is unambiguous and allows a clear assignment to the rim size.
The NOMINAL diameter is the generic name given to a group of tyres/rims eg 16". In general 16" refers to the group of tyres/rims that fit 16" Kids Bikes. They will be called for example 16 x 1.5 etc..
BUT 16 x 1-1/8 tyres/rims are NOT the same diameter as the above group - they are Wheelchair Sizes and will not fit normal kids bikes.
As a general rule 16 x a decimal number ( eg 2.1) will not be compatible with 16 x a fraction ( eg 1/8).
ERD is a number used in spoke length calculations and is not to be confused for the physical size of the rim. The ERD will only be used by someone to build a wheel up from scratch.
* Will my tyre fit this rim?
The Best Suits Tyre Sizes above are based on our wheelbuilders conservative recommendation. In most cases you could fit a tyre a size or two up - but this will be entirely up to you.
